General Information

Manufacturer:   Corsair
Manufacturer Part Number:   CC-9011042-WW
Manufacturer Website Address:   www.corsair.com
Brand Name:   Corsair
Product Line:   Graphite
Product Model:   230T

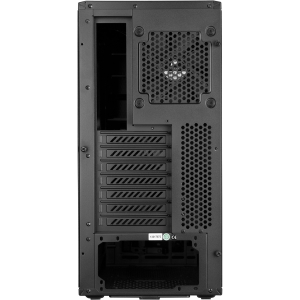

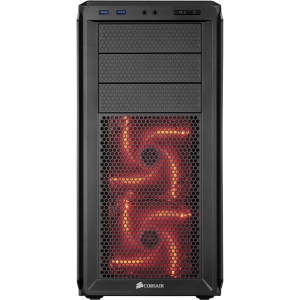

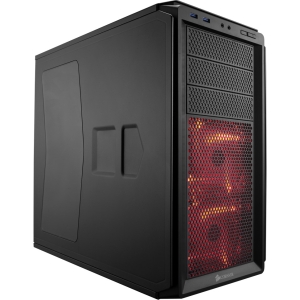

Product Name:   Graphite Series 230T Compact Mid Tower Case-Black
Marketing Information:

Fast and straightforward system building, by design.

At Corsair, we believe that no matter your budget, building your own PC should be easy, and have great looking results. Choose the Graphite Series 230T, and the only time you'll need a screwdriver is for attaching the motherboard. Your own custom-built PC will have a look that's aggressive, yet refined, with up-front USB 3.0 and headset connectors for quick access. Add to that dual front intake LED fans for great cooling potential. Whether you're building a gaming PC or just a replacement for a boring office-grade box, you can enjoy the unique pride of ownership that comes from a great-looking system that you've built yourself.

Product Type:   Computer Case

Technical Information

Motherboard Supported:   ATX
Motherboard Supported:   Micro ATX
Motherboard Supported:   Mini ITX
Number of Fans Supported:   6
Number of Fans Installed:   2
Fan Size Supported:   4.7" (120 mm)
Fan Size Supported:   5.5" (140 mm)
Installed Fan Size:   4.7" (120 mm)
Features:   Cable Management

Bays

Number of External 5.25" Bays:   3
Number of Internal 3.5" Bays:   4
Number of Internal 2.5" Bays:   4
Number of Total Expansion Bays:   11

I/O Expansions

Number of Total Expansion Slots:   7

Interfaces/Ports

Total Number of USB Ports:   2
Front USB:   Yes

Power Description

Power Supply Installed:   No
Number of Power Supplies Supported:   1
Number of Power Supplies Installed:   0

Physical Characteristics

Color:   Red
Color:   Black
Material:   Steel
Material:   Plastic
Form Factor:   Mid-tower
Height:   19.9" (505 mm)
Width:   8.3" (210 mm)
Depth:   17.3" (440 mm)
Weight (Approximate):   6.05 kg

Miscellaneous

Package Contents:

• Graphite Series 230T Compact Mid Tower Case-Black
• Quick Start Guide
• Accessories box with Screws, Zip Ties, and other Mounting Hardware



Warranty

Limited Warranty:   2 Years Manufacture
