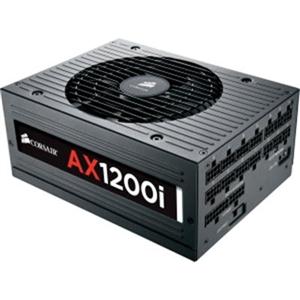

Corsair Platinum AX1200i 1200W ATX EPS12V ATX12V Fully Modular Power Supply Corsair Link Support

Corsair Platinum AX1200i, 1200W ATX, EPS12V, ATX12V, Fully Modular Power Supply, Corsair Link Support

Technical Information

Specification Compliance:   ATX12V/EPS12V
Efficiency:   92%
Power Factor Correction (PFC):   Active
Number of Fans:   1
Protection Type:   Over Voltage
Protection Type:   Short Circuit
Protection Type:   Over Current
Protection Type:   Under Voltage
Modular:   Yes

Reliability

MTBF:   2000000 Hour

Power Description

Input Voltage Type:   AC
Input Voltage:   110 V AC
Input Voltage:   220 V AC
Input Voltage Range:   90 V AC to 264 V AC
Number of +12V Rails:   1
Output Voltage:   5 V DC @ 3.50 A
Output Voltage:   5 V DC @ 30 A
Output Voltage:   12 V DC @ 100.40 A
Output Voltage:   3.3 V DC @ 30 A
Output Voltage:   -12 V DC @ 800 mA
Output Power:   1.20 kW

Interfaces/Ports

Plug/Connector:   On/Off Switch
Receptacles:   12 x 4-pin LP4 Peripheral Device
Receptacles:   2 x 4+4pin EPS12V
Receptacles:   2 x 4-pin SP4 Floppy Drive
Receptacles:   16 x Serial ATA
Receptacles:   6 x 6+2pin PCI-E
Receptacles:   1 x 24-pin ATX Motherboard

Physical Characteristics

Form Factor:   Internal
Height:   3.39" (86 mm)
Width:   5.91" (150 mm)
Depth:   7.87" (200 mm)
Weight (Approximate):   3.99 kg

Miscellaneous

Package Contents:

• AX1200i Digital ATX Power Supply
• Modular Cable Pack
• Accessory Bag with Mounting Hardware, Cable Ties, and Case Badge
• Installation Guide
• Corsair Link Digital Interface Cable
• Corsair Link USB Dongle

Environmentally Friendly:   Yes
Environmental Certification:   80 Plus Platinum
Country of Origin:   China

Warranty

Limited Warranty:   7 Years Manfacture
