Description

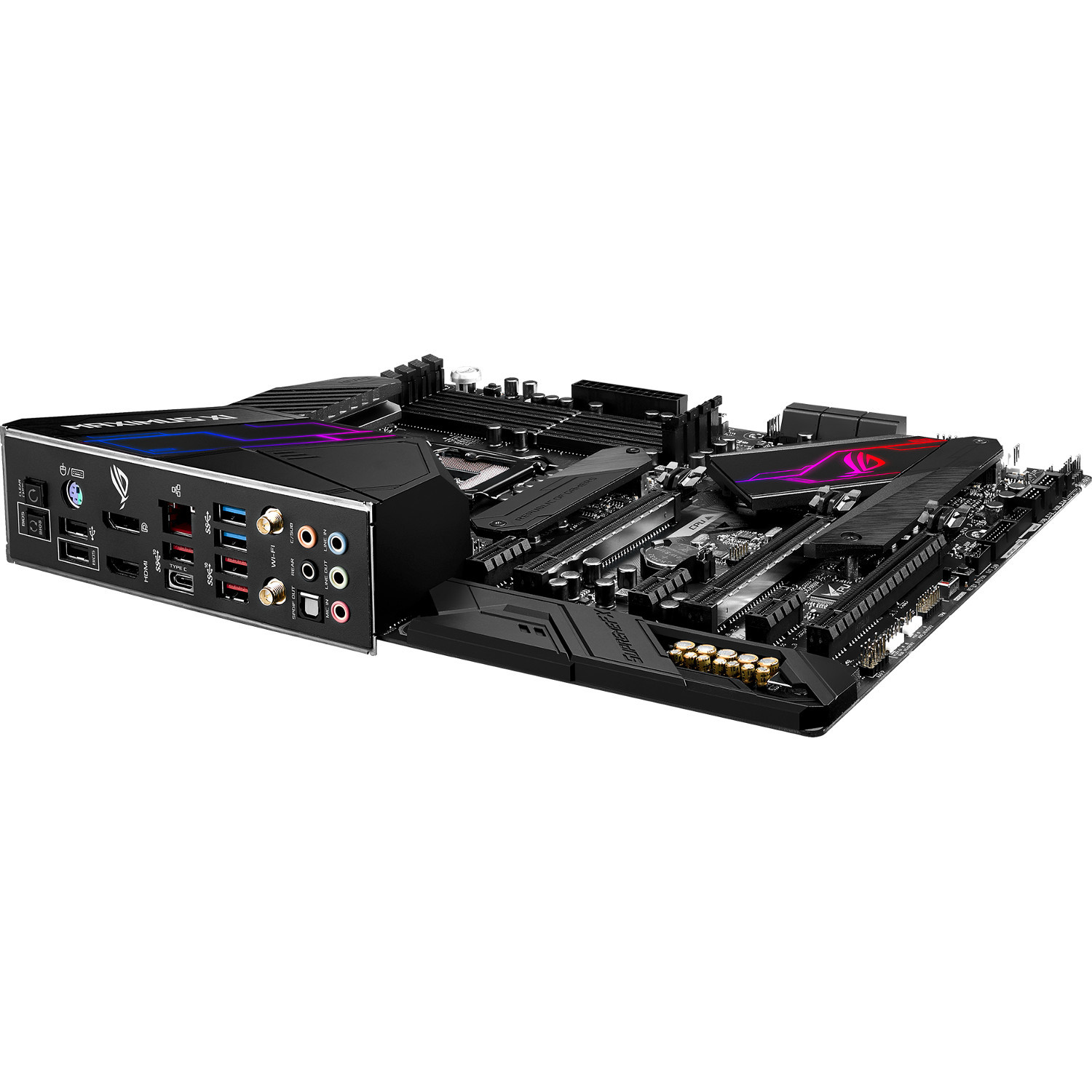

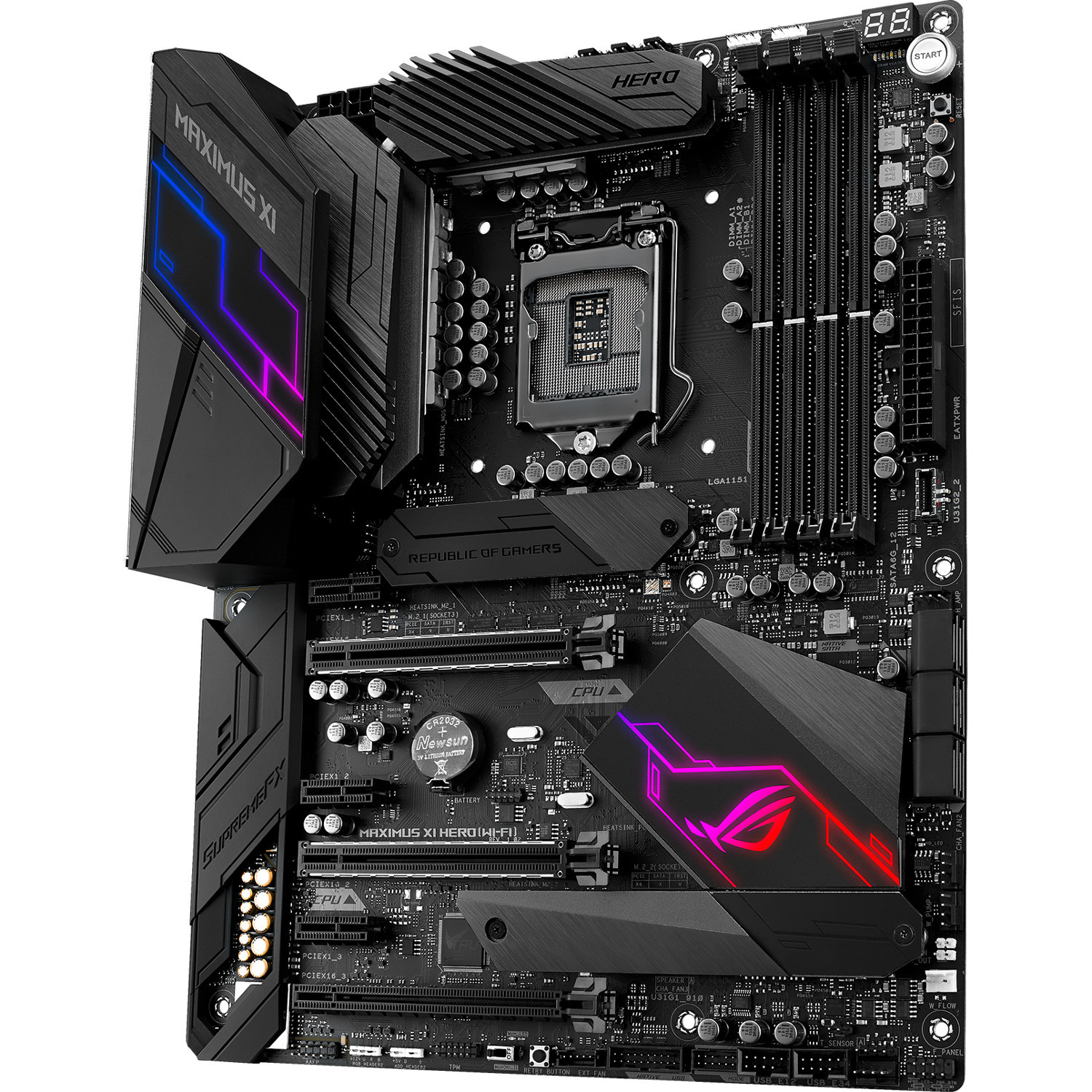

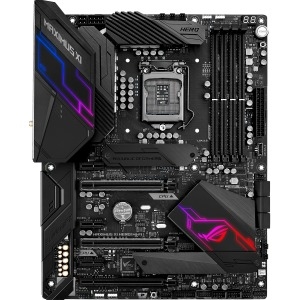

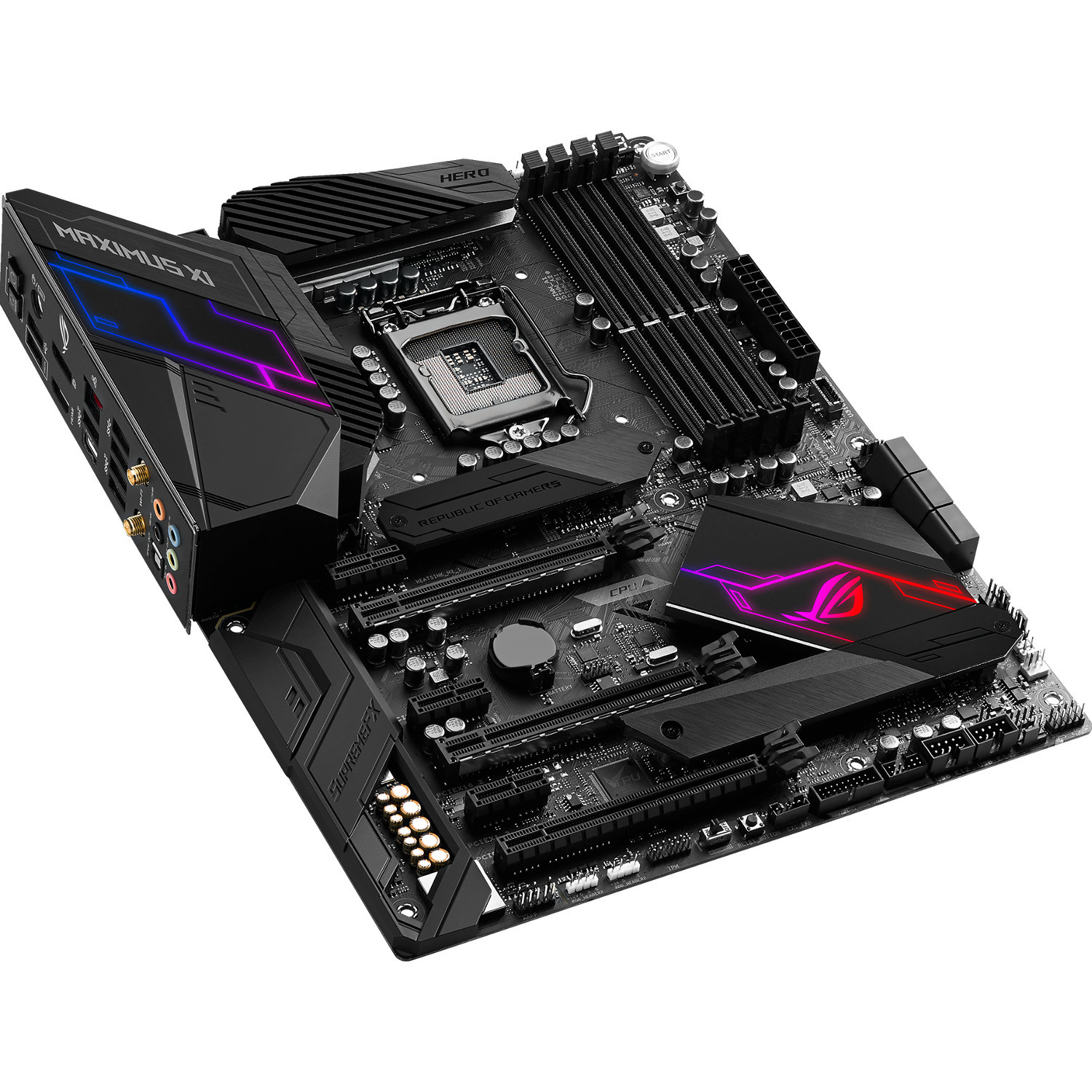

Asus ROG Maximus XI Hero Wi-Fi LGA 1151 Socket H4 Z390 DDR4 DisplayPort / HDMI / USB 3.1 Intel Z390 ATX 8th/9th gen Motherboard

Asus ROG Maximus XI Hero Wi-Fi LGA 1151 Socket H4 Z390 DDR4 DisplayPort / HDMI / USB 3.1 Intel Z390 ATX 8th/9th gen Motherboard

Detail Specifications

	CPU Intel Socket 1151 9th / 8th Gen Intel Core^TM, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 Note: The Intel Turbo Boost Technology 2.0 support depends on the CPU types. Note: Refer to www.asus.com for CPU support list

	Chipset Intel Z390

	Memory 4 x DIMM, Max. 64GB, DDR4 4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/ 3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) Note: Hyper DIMM support is subject to the physical characteristics of individual CPUs. Note: Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

Memory
4 x DIMM, Max. 64GB, DDR4
4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/
3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
Note: Hyper DIMM support is subject to the physical characteristics of individual CPUs.
Note: Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

	Graphic Integrated Graphics Processor- Intel UHD Graphics support Multi-VGA output support : HDMI/DisplayPort ports - Supports HDMI with max. resolution 4096 x 2160 at 30 Hz - Supports DisplayPort with max. resolution 4096 x 2304 at 60 Hz

	Multi-GPU Support Supports NVIDIA 2-Way SLI^TM Technology Supports AMD 3-Way CrossFireX^TM Technology

	Expansion Slots Intel Z390 Chipset - 2 x PCIe 3.0 x16 (x16 or dual x8 or x8/x4/x4) - 1 x PCIe 3.0 x16 (x4 mode)^Note1 - 3 x PCIe 3.0 x1

	Storage Intel Z390 Chipset : - 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA and PCIE 3.0 x 4 mode)^Note2 - 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) - 6 x SATA 6Gb/s port(s) - Support Raid 0, 1, 5, 10 - Intel Optane^TM Memory Ready

	LAN Intel I219V, 1 x Gigabit LAN Controller(s), Dual interconnect between the Integrated Media Access Controller (MAC) and Physical Layer (PHY) Anti-surge LANGuard ROG GameFirst Technology

	Wireless Data Network Intel Wireless-AC 9560 Wi-Fi 802.11 a/b/g/n/ac Supports dual band frequency 2.4/5 GHz Supports MU-MIMO Supports channel bandwidth: HT20/HT40/HT80/HT160

	Bluetooth Bluetooth 5.0

	Audio ROG SupremeFX 8-Channel High Definition Audio CODEC S1220 - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - SupremeFX Shielding Technology - ESS ES9023P - Supports up to 32-Bit/192kHz playback^Note3 Audio Feature : - Gold-plated jacks - Optical S/PDIF out port(s) at back panel - Sonic Radar III - Sonic Studio III + Sonic Studio Link

Audio
ROG SupremeFX 8-Channel High Definition Audio CODEC S1220
- Impedance sense for front and rear headphone outputs
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- SupremeFX Shielding Technology
- ESS ES9023P
- Supports up to 32-Bit/192kHz playback^Note3
Audio Feature :
- Gold-plated jacks
- Optical S/PDIF out port(s) at back panel
- Sonic Radar III
- Sonic Studio III + Sonic Studio Link

	USB Ports Intel Z390 Chipset : - 4 x USB 3.1 Gen 2 port(s) (4 at back panel, +red, 1 x Type-C+3 x Type-A) Intel Z390 Chipset : - 2 x USB 3.1 Gen 1 port(s) (2 at back panel, +blue, 2 x Type-A) Intel Z390 Chipset : - 6 x USB 2.0 port(s) (2 at back panel, +black, 4 at mid-board) Intel Z390 Chipset : - 1 x USB 3.1 Gen 2 front panel connector port(s)

	ROG Exclusive Features ReTry Button Start Button Reset Button Extreme Engine Digi+ : - MicroFine Alloy Chokes - 10K Black Metallic Capacitors - OptiMOS^TM MOSFET Mem TweakIt Extreme Tweaker ROG Exclusive Software - Mem Tweakit - RAMCache III - RAMDisk - CPU-Z - GameFirst V - Sonic Studio III + Sonic Studio Link - Sonic Radar III

	Special Features ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 : - 5-Way Optimization tuning key perfectly consolidates TPU Insight, EPU Guidance, DIGI+ VRM, Fan Expert 4, and Turbo App AURA : - Aura Lighting Control - Aura RGB Strip Headers - Aura Lighting Effects Synchronization with compatible ASUS ROG devices - Aura Addressable Strip Header(s) ASUS Exclusive Features : - USB BIOS Flashback - MemOK II - AI Suite 3 - Ai Charger - ASUS CrashFree BIOS 3 - Armoury Crate - Pre-mounted I/O Shield - ASUS NODE: hardware control interface - OptiMem II - ASUS EZ Flash 3 - ASUS C.P.R.(CPU Parameter Recall) - BUPDATER - BIOS Flashback Button - Clear CMOS Button - Reset Button ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 ASUS Q-Design : - ASUS Q-Code - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector Overclocking Protection : - ASUS C.P.R.(CPU Parameter Recall)

Special Features
ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 :
- 5-Way Optimization tuning key perfectly consolidates TPU Insight, EPU Guidance, DIGI+ VRM, Fan Expert 4, and Turbo App
AURA :
- Aura Lighting Control
- Aura RGB Strip Headers
- Aura Lighting Effects Synchronization with compatible ASUS ROG devices
- Aura Addressable Strip Header(s)
ASUS Exclusive Features :
- USB BIOS Flashback
- MemOK II
- AI Suite 3
- Ai Charger
- ASUS CrashFree BIOS 3
- Armoury Crate
- Pre-mounted I/O Shield
- ASUS NODE: hardware control interface
- OptiMem II
- ASUS EZ Flash 3
- ASUS C.P.R.(CPU Parameter Recall)
- BUPDATER
- BIOS Flashback Button
- Clear CMOS Button
- Reset Button
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
ASUS Q-Design :
- ASUS Q-Code
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector
Overclocking Protection :
- ASUS C.P.R.(CPU Parameter Recall)

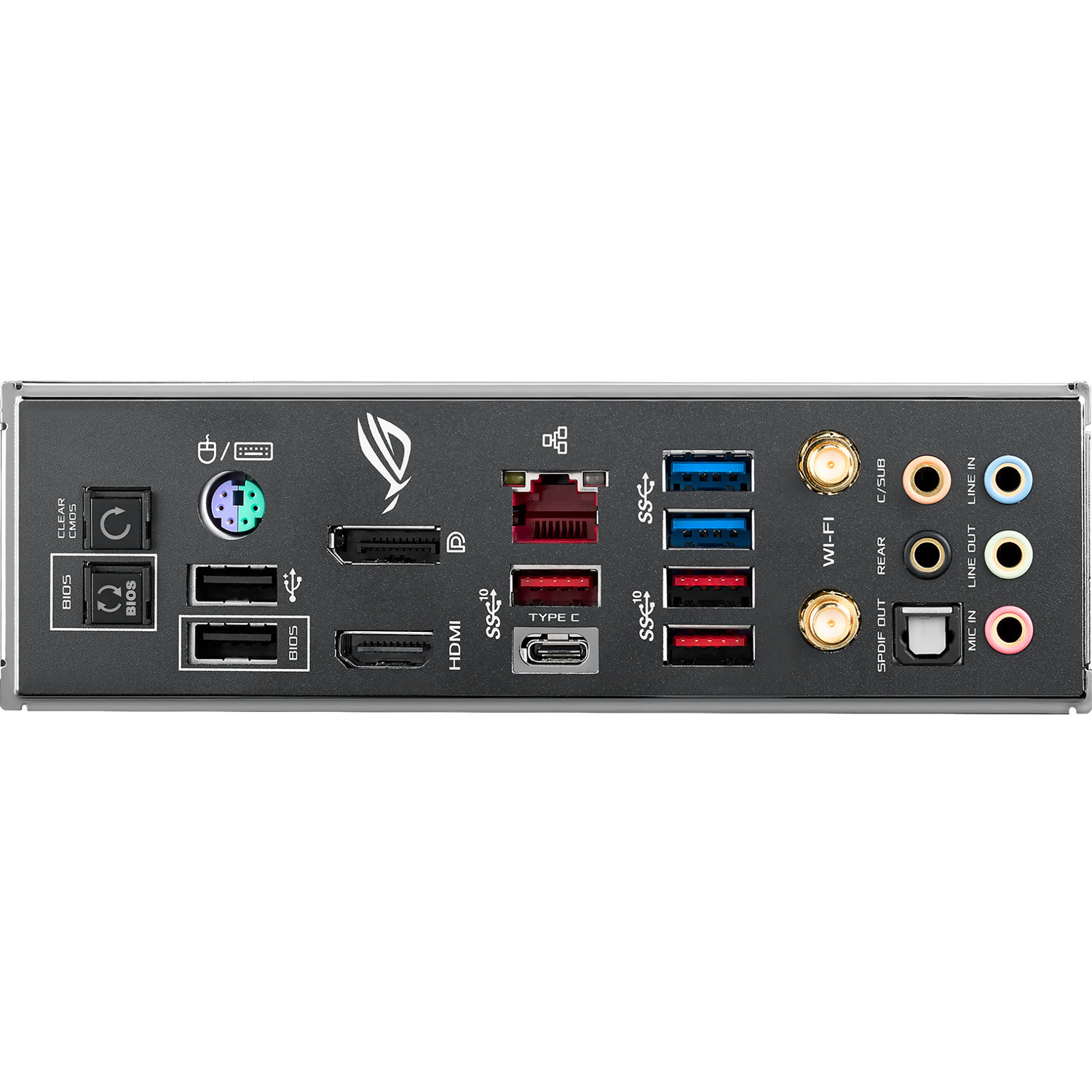

	Back I/O Ports 1 x PS/2 keyboard/mouse combo port(s) 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 4 x USB 3.1 Gen 2 1 x Type-C+3 x Type-A 2 x USB 3.1 Gen 1 (blue) Type-A, 2 x USB 2.0 1 x Optical S/PDIF out 1 x Clear CMOS button(s) 1 x USB BIOS Flashback Button(s) 1 x ASUS Wi-Fi Module 5 x Gold-plated audio jacks

	Internal I/O Ports 2 x Aura Addressable Strip Header(s) 2 x Aura RGB Strip Headers 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA and PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 1 x TPM connector(s) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x CPU OPT Fan connector(s) (1 x 4 -pin) 3 x Chassis Fan connector(s) (3 x 4 -pin) 1 x AIO_PUMP connector (1 x 4 -pin) 1 x H_AMP fan connector 1 x W_PUMP+ connector (1 x 4 -pin) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x MemOK II switch(es) 1 x Reset button(s) 1 x ReTry button 1 x System panel connector 1 x EXT_Fan header 1 x W_IN header 1 x W_OUT header 1 x W_FLOW header 1 x Thermal sensor connector 1 x Start button 1 x USB 3.1 Gen 2 front panel connector

Internal I/O Ports
2 x Aura Addressable Strip Header(s)
2 x Aura RGB Strip Headers
1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA and PCIE 3.0 x 4 mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
1 x TPM connector(s)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x CPU OPT Fan connector(s) (1 x 4 -pin)
3 x Chassis Fan connector(s) (3 x 4 -pin)
1 x AIO_PUMP connector (1 x 4 -pin)
1 x H_AMP fan connector
1 x W_PUMP+ connector (1 x 4 -pin)
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x MemOK II switch(es)
1 x Reset button(s)
1 x ReTry button
1 x System panel connector
1 x EXT_Fan header
1 x W_IN header
1 x W_OUT header
1 x W_FLOW header
1 x Thermal sensor connector
1 x Start button
1 x USB 3.1 Gen 2 front panel connector

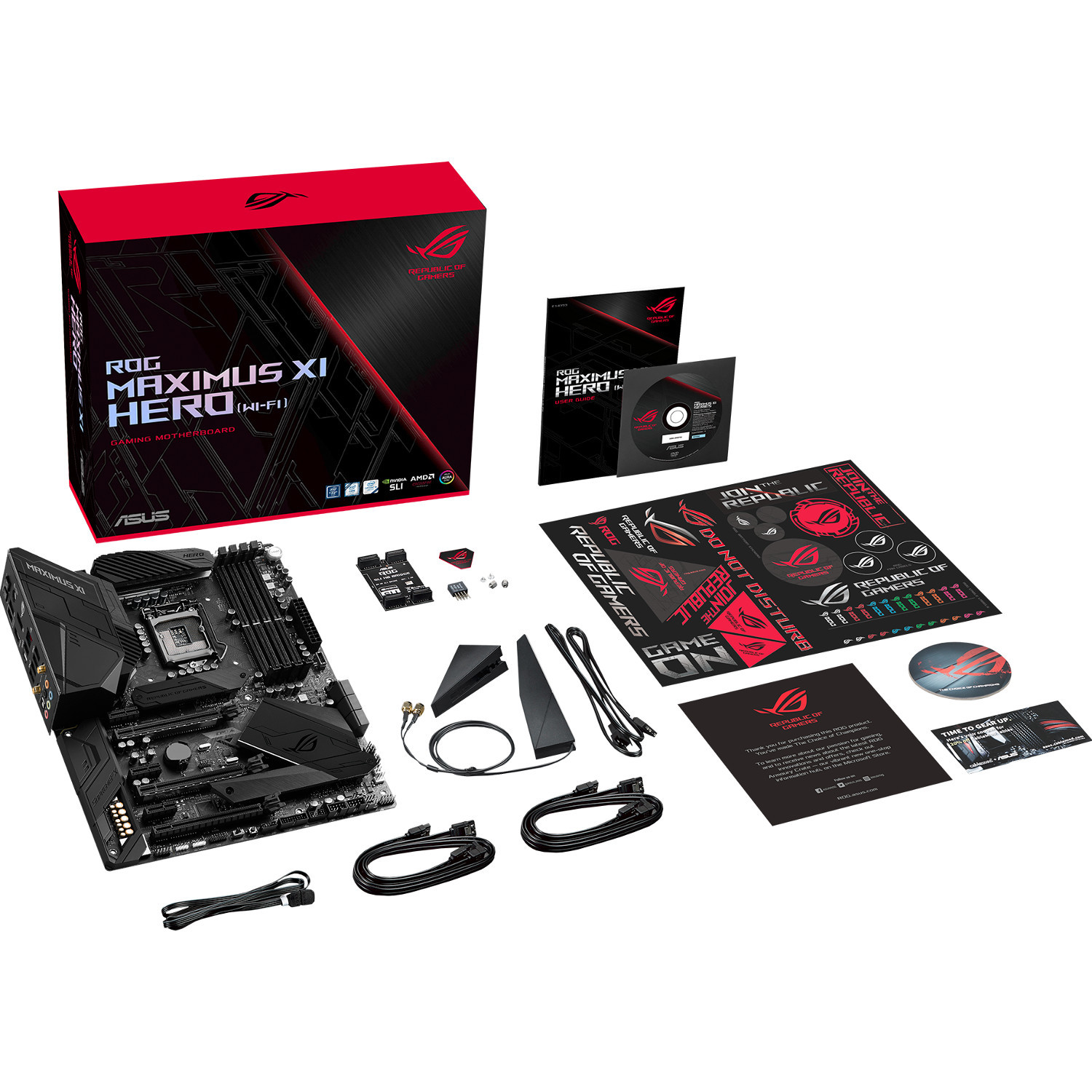

	Accessories Users manual 4 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD 1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant) 1 x SLI HB BRIDGE(2-WAY-M) 1 x ROG big sticker 1 x Q-Connector 1 x Extension Cable for RGB strips (80 cm) 1 x Extension cable for Addressable LED 1 x ROG coaster(s)

	BIOS 1 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, SM BIOS 3.1, ACPI 6.1

	Operating System Windows 10 64-bit

	Form Factor ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

	Note Note1: The PCIe x16_3 slot shares bandwidth with SATA6G_5 and SATA6G_6. The PCIe x16_3 runs x2 mode by default. Note2: When the M.2_1 Socket 3 is operating in SATA mode, SATA6G_2 port will be disabled. Note3: Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.

	Item Dimension(L inchxW inchxH inch) 15 x 13 x 5 Weight 8.00lb Warranty Information 3 Years Manufacture
