3470 MB/s Maximum Read Transfer Rate



General Information

Manufacturer:   Western Digital Corporation
Manufacturer Part Number:   WDS100T3XHC
Manufacturer Website Address:   www.wdc.com
Brand Name:   WD
Product Line:   Black
Product Series:   SN750
Product Model:   WDS100T3XHC

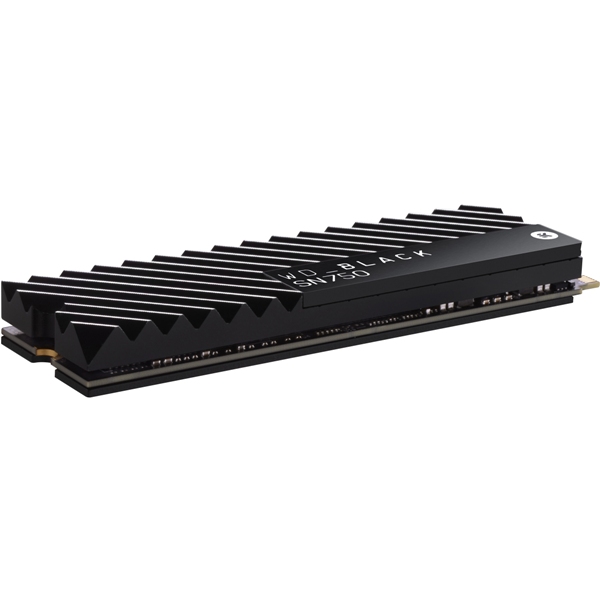

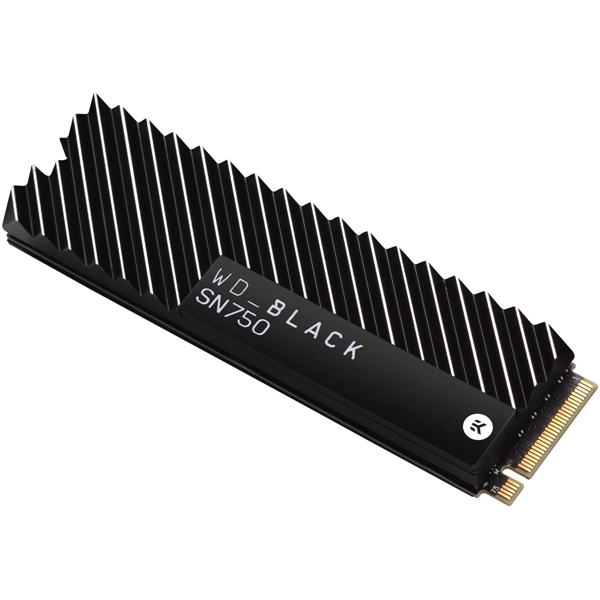

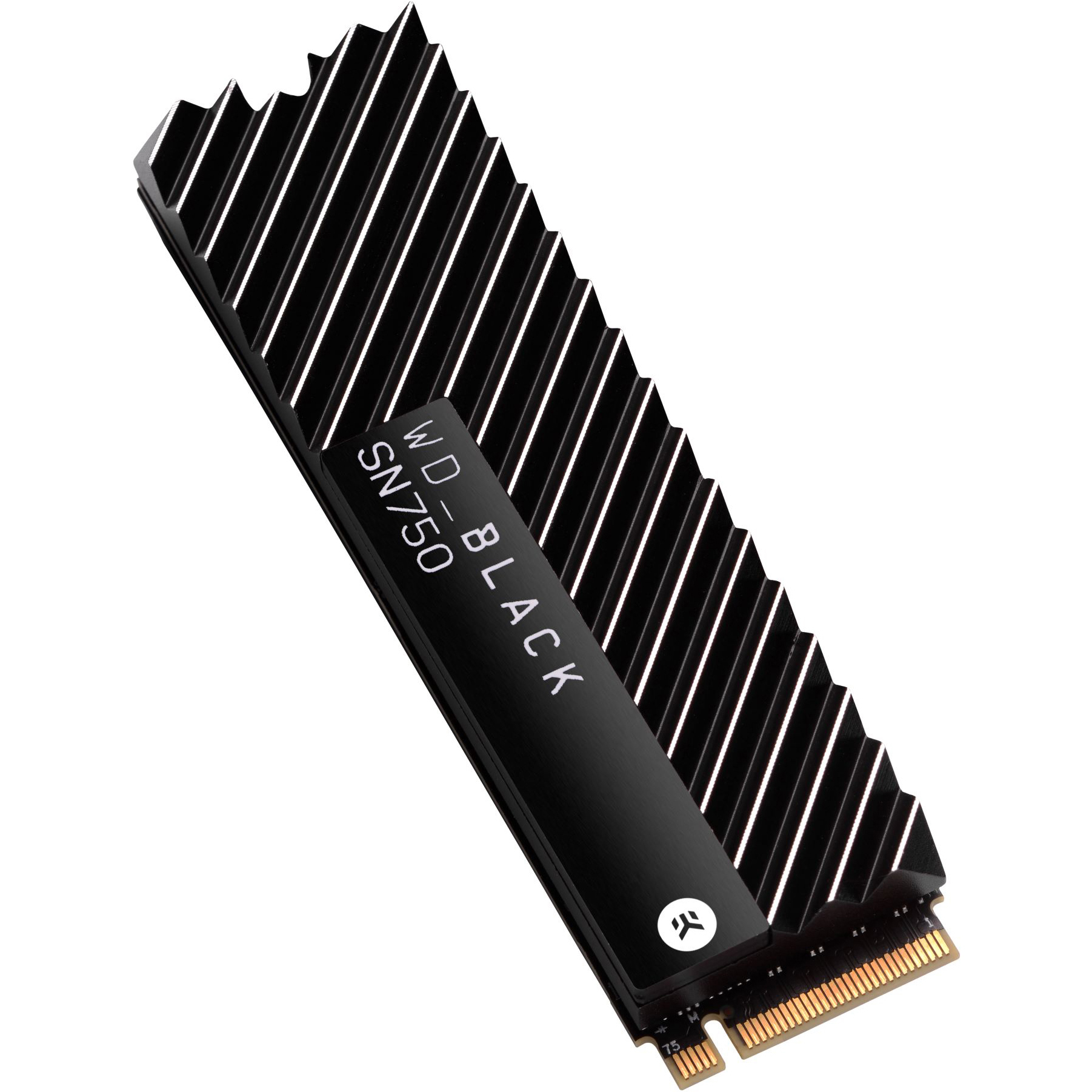

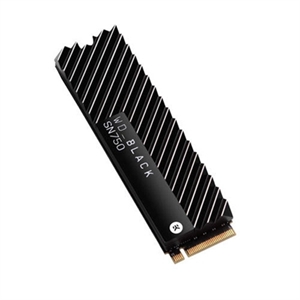

Product Name:   1TB Black SN750 NVMe SSD with Heatsink
Marketing Information:   The WD BLACK™ N750 NVMe™ SSD delivers top tier performance for gaming and hardware enthusiasts looking to upgrade their gaming PC or a custom PC. Available in capacities ranging from 250GB to 2TB, the WD BLACK™ SN750 NVMe™ SSD rivals some of the best performing drives on the market to help give gamers that competitive edge. With an optional heatsink feature that helps push consistent sustained performance, and other complementary features that improve system responsiveness such as Gaming Mode in the WD BLACK SSD Dashboard, the WD BLACK™ SN750 NVMe™ SSD pushes the boundaries of ordinary SSD performance.

Using our in-house 3D NAND, controller, and firmware, the drive excels not only in performance, but power efficiency as well. The WD BLACK™ SN750 NVMe™ SSD delivers read speeds more than five times faster than a typical SATA drive and features capacities up to 2TB, ideal for storing large video game files.
Product Type:   Solid State Drive

Technical Information

Storage Capacity:   1 TB

Drive Performance

Maximum Read Transfer Rate:   3470 MB/s
Maximum Write Transfer Rate:   3000 MB/s
Endurance (TBW):   600 TB

Network & Communication

Wireless LAN:   No

Interfaces/Ports

Drive Interface:   PCI Express
Drive Interface Standard:   PCI Express 3.0 x4

Physical Characteristics

Drive Type:   Internal
Form Factor:   M.2 2280
Height:   0.32" (8.10 mm)
Width:   0.95" (24.20 mm)
Depth:   3.15" (80 mm)
Weight (Approximate):   33.2 g

Warranty

Limited Warranty:   5 Years Manufacture
