Description

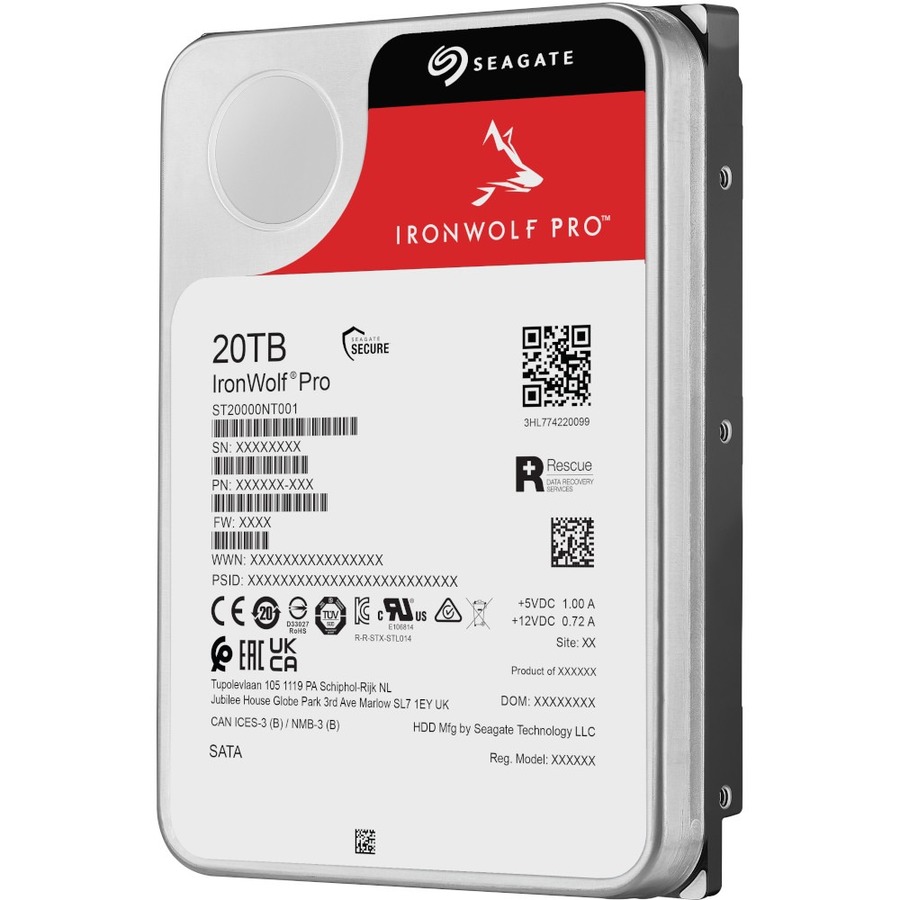

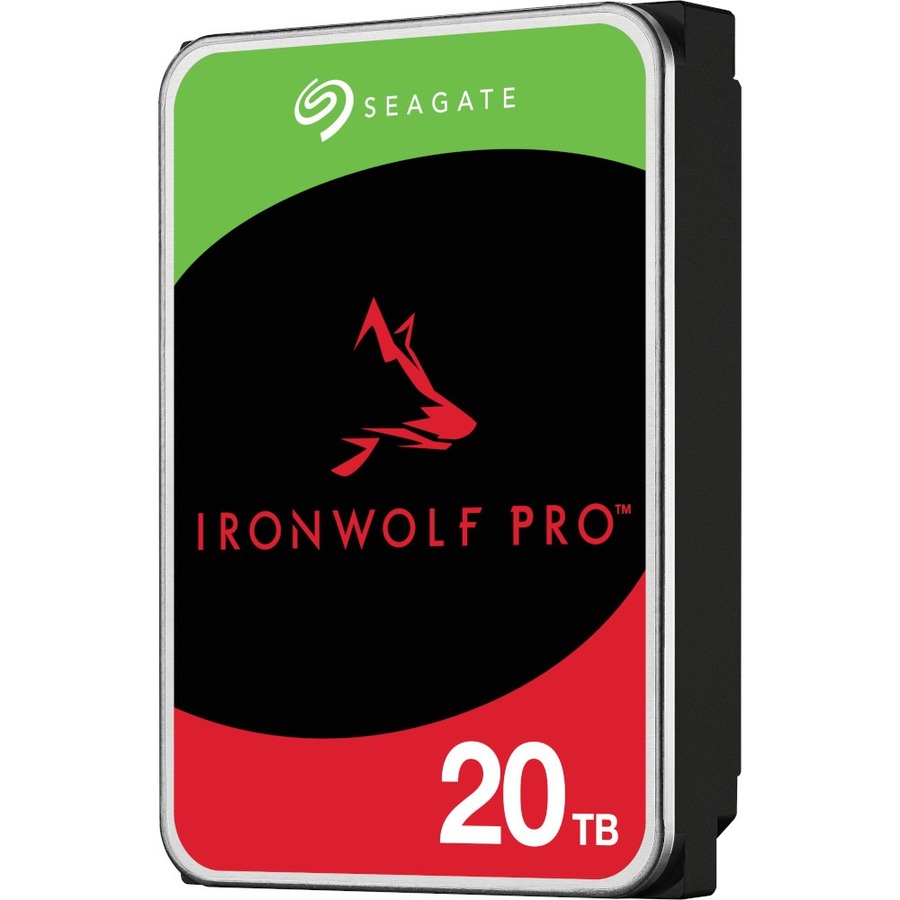

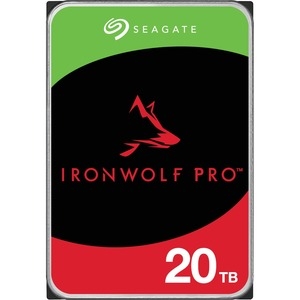

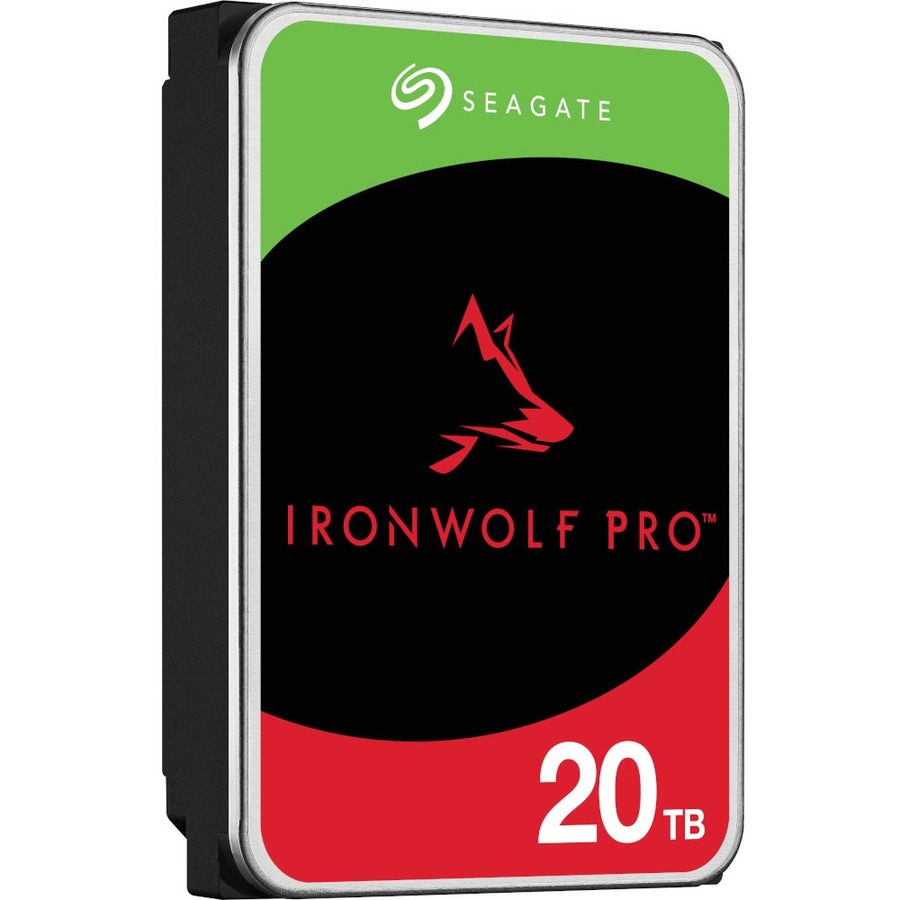

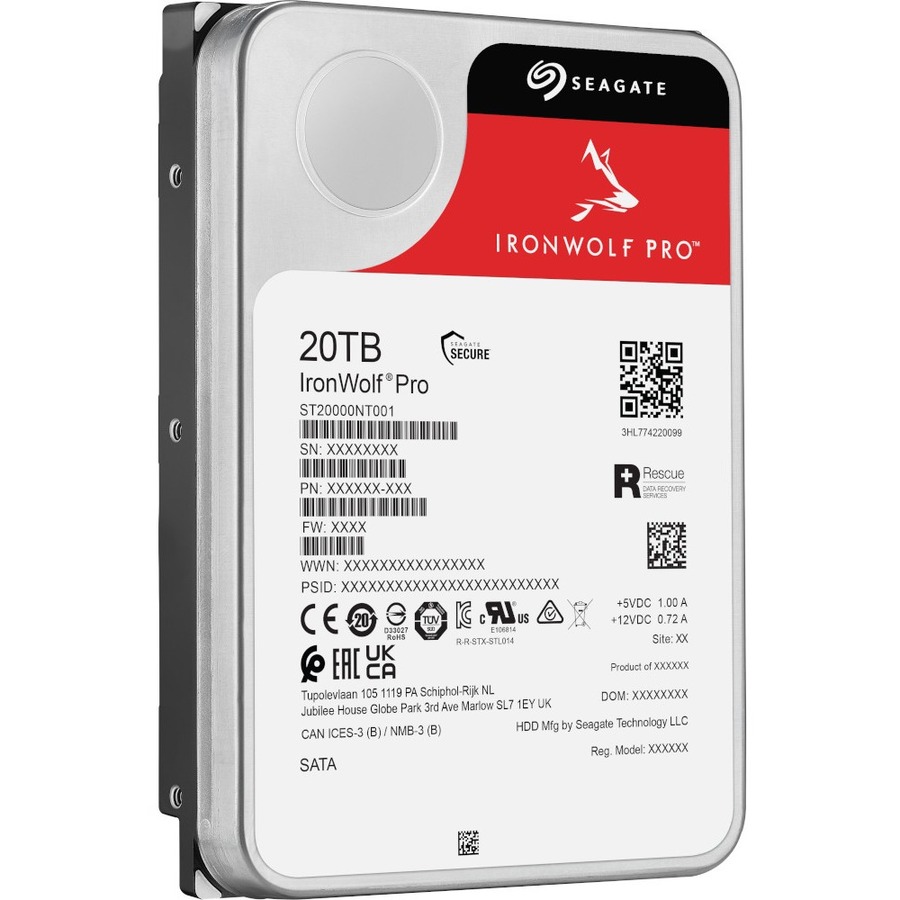

Seagate HD ST20000NT001 20TB SATA 3.5 IronWolf Pro Bare

Seagate IronWolf Pro ST20000NT001 20 TB Hard Drive - 3.5" Internal - SATA (SATA/600) - Conventional Magnetic Recording (CMR) Method

Server, Workstation Device Supported - 7200rpm

UPC:	763649176252

Detail Specifications

	Specifications Capacity 20TB Interface SATA 6Gb/s Features Drive Bays Supported Unlimited Recording Technology CMR Drive Design (Air or Helium) Helium Workload Rate Limit (WRL) 550 Rotational Vibration (RV) Sensors Yes Cache (MB) 256 Reliability/Data Integrity Mean Time Between Failures (MTBF, hours) 2500000 Nonrecoverable Read Errors per Bits Read, Max 1 per 10E15 Power-On Hours (per year) 8760 Sector Size (Bytes per Logical Sector) 512E Rescue Data Recovery Services(years) ³ 3 Performance Spindle Speed (RPM) 7200 Interface Access Speed (Gb/s) 6.0, 3.0, 1.5 Max. Sustained Transfer Rate OD (MB/s) 285MB/s Rotational Vibration at 10-1500 Hz (rad/s) 12.5 Power Consumption Startup Current, Typical (12V, A) 2 Idle Power, Average (W) 5.5v Average Operating Power (W) 7.7Wv Standby Mode, Typical (W) 1 Sleep Mode, Typical (W) 1

Specifications
Capacity
20TB
Interface
SATA 6Gb/s
Features
Drive Bays Supported
Unlimited
Recording Technology
CMR
Drive Design (Air or Helium)
Helium
Workload Rate Limit (WRL)
550
Rotational Vibration (RV) Sensors
Yes
Cache (MB)
256
Reliability/Data Integrity
Mean Time Between Failures (MTBF, hours)
2500000
Nonrecoverable Read Errors per Bits Read, Max
1 per 10E15
Power-On Hours (per year)
8760
Sector Size (Bytes per Logical Sector)
512E
Rescue Data Recovery Services(years) ³
3
Performance
Spindle Speed (RPM)
7200
Interface Access Speed (Gb/s)
6.0, 3.0, 1.5
Max. Sustained Transfer Rate OD (MB/s)
285MB/s
Rotational Vibration at 10-1500 Hz (rad/s)
12.5
Power Consumption
Startup Current, Typical (12V, A)
2
Idle Power, Average (W)
5.5v
Average Operating Power (W)
7.7Wv
Standby Mode, Typical (W)
1
Sleep Mode, Typical (W)
1

	Power Supply Requirements +12 V and +5 V Environmental/Temperature Operating Temperature (ambient, min ^oC) 0 Operating Temperature (drive reported, max ^oC)⁴ 65 Nonoperating Temperature (ambient, min ^oC) -40 Nonoperating Temperature (ambient, max ^oC) 70 Environmental/Acoustics Vibration, Nonoperating: 10Hz to 500Hz (Grms) 2.27 Acoustics, Idle (typical, measured in Idle 1 state) (dBA) 20 Acoustics, Seek (typical) (dBA) 26 Environmental/Shock Shock, Operating 2ms (Read/Write) (Gs) 40/40Gs Shock, Nonoperating, 1ms and 2ms (Gs) 200

Power Supply Requirements
+12 V and +5 V
Environmental/Temperature
Operating Temperature (ambient, min ^oC)
0
Operating Temperature (drive reported, max ^oC)⁴
65
Nonoperating Temperature (ambient, min ^oC)
-40
Nonoperating Temperature (ambient, max ^oC)
70
Environmental/Acoustics
Vibration, Nonoperating: 10Hz to 500Hz (Grms)
2.27
Acoustics, Idle (typical, measured in Idle 1 state) (dBA)
20
Acoustics, Seek (typical) (dBA)
26
Environmental/Shock
Shock, Operating 2ms (Read/Write) (Gs)
40/40Gs
Shock, Nonoperating, 1ms and 2ms (Gs)
200

	Notes: 3 Rescue Data Recovery Services not available in some countries. 4 Seagate does not recommend operating at sustained drive temperatures above 60^oC. Operating at higher temperatures may affect drive health.

	Item Dimension (L inchxW inchxH inch) 1 x 4 x 6 Weight 1.48lb Warranty Information 5 Years (Manufacture)

Seagate HD ST20000NT001 20TB SATA 3.5 IronWolf Pro Bare

Part Number: 14761
Brand: Seagate Technology
Product Sku: ST20000NT001
