Asus M5A97 LE R2.0 AMD AM3+ 970/SB950 DDR3 PCI Express SATA 6GB/s USB3.0 ATX Motherboard Retail
Asus Motherboard M5A97 LE R2.0 AMD AM3+ 970/SB950 DDR3 PCI Express SATA 6GB/s USB3.0 ATX Retail
Detail Specifications
| CPU AMD AM3+ FX/Phenom II/Athlon II/Sempron 100 Series Processors Supports AM3+ 32 nm CPU Supports CPU up to 8 cores Supports CPU up to 140 W AMD Cool n Quiet Technology |
| Chipset AMD 970/SB950 |
| Memory 4 x DIMM, Max. 32GB, DDR3 2133(O.C.)/1866/1600/1333/1066 MHz ECC, Non-ECC, Un-buffered Memory Dual Channel Memory Architecture |
| System Bus Up to 4.8 GT/s Hyper Transport 3.0 |
| Multi-GPU Support Supports AMD Quad-GPU CrossFireX Technology |
| Expansion Slot 1 x PCIe 2.0 x16 (blue) 1 x PCIe 2.0 x16 (x4 mode, black) 2 x PCIe 2.0 x1 2 x PCI |
| Storage AMD SB950 Controller: 6 x SATA 6Gb/s Port(s) Gray Support RAID 0, 1, 5, 10 |
| LAN Realtek 8111F, 1 x Gigabit LAN Controller(s) |
| Audio Realtek ALC887 8-Channel High Definition Audio CODEC Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking Audio Feature: - ASUS Noise Filter - Optical S/PDIF out header(s) at mid-board |
| USB Ports ASMedia USB 3.0 Controller: -2 x USB 3.0/2.0 port(s) (2 at back panel, blue) AMD SB950 Controller: -12 x USB 2.0/1.1 port(s) (6 at back panel, black, 6 at mid-board) |
| Overclocking Features Overclocking Protection: - ASUS C.P.R.(CPU Parameter Recall) |
| Special Features ASUS Dual Intelligent Processors - TPU EPU: ASUS TPU: - Auto Tuning - TurboV ASUS EPU: - EPU ASUS Power Design: - 4 +2 Phase Power Design ASUS Exclusive Features: - AI Suite II - Ai Charger+ - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface - Network iControl - USB 3.0 Boost ASUS Quiet Thermal Solution: - Stylish Fanless Design Heat-sink solution - ASUS Fan Xpert ASUS EZ DIY: - Precision Tweaker 2 - ASUS O.C. Profile - ASUS EZ Flash 2 - ASUS MyLogo 2 - Multi-language BIOS ASUS Q-Design: - ASUS Q-Slot |

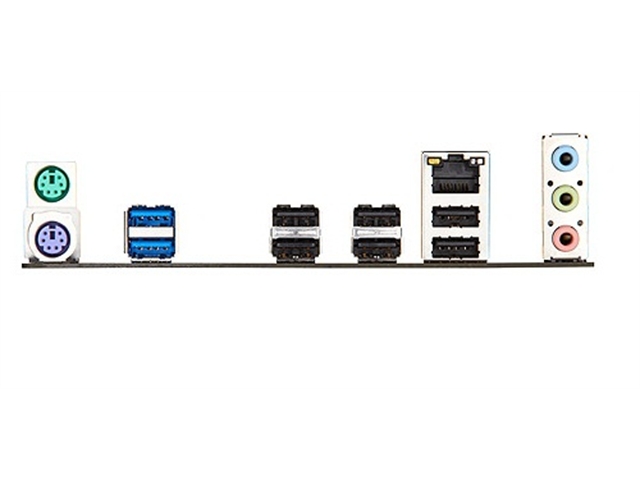

| Back I/O Ports 1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x LAN (RJ45) port(s) 2 x USB 3.0 6 x USB 2.0 3 x Audio jack(s) |
| Internal I/O Ports 3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s) 1 x COM port(s) connector(s) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (4 -pin) 3 x Chassis Fan connector(s) (4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Chassis Intrusion connector(s) 1 x Clear CMOS jumper(s) |
| Accessories Users Manual I/O Shield 2 x SATA 6Gb/s Cable(s) |
| BIOS 64 Mb Flash ROM, UEFI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, F12 PrintScreen, F3 Shortcut Function and ASUS DRAM SPD (Serial Presence Detect) memory information |
| Manageability WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE |
| Support Disc Drivers ASUS Utilities ASUS Update Anti-Virus Software (OEM Version) |
| Form Factor ATX Form Factor |
| Item Dimension (L"xW"xH") 10.35 x 12.91 x 2.09 Weight 2.95 lb Warranty Information 3 Years Manufacture |
Asus M5A97 LE R2.0 AMD AM3+ 970/SB950 DDR3 PCI Express SATA 6GB/s USB3.0 ATX Motherboard Retail
- Part Number: 1490
- Brand: ASUS TeK
- Product Sku: M5A97 LE R2.0
-
Richmond BC Warehouse:Toronto ON Warehouse:
- Availability: Call
-
$112.20
- Was: $168.30
