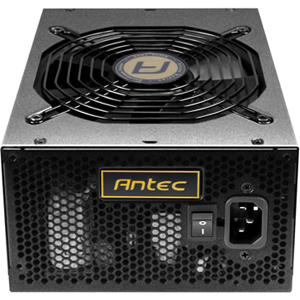

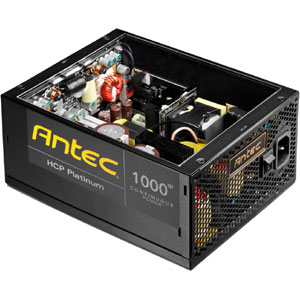

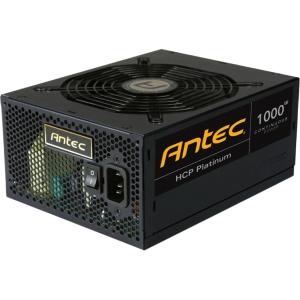

Antec Power Supply HCP-1000 PLATINUM 1000W High Current PRO 12V EPS12V Active PFC PCI Express 80PLUS PLATINUM ATX

Antec Power Supply HCP-1000 PLATINUM 1000W High Current PRO 12V EPS12V Active PFC PCI Express 80PLUS PLATINUM ATX

General Information

Manufacturer:   Antec, Inc
Manufacturer Part Number:   HCP-1000 PLATINUM
Manufacturer Website Address:   www.antec.com
Brand Name:   Antec
Product Line:   High Current Pro
Product Series:   Platinum
Product Model:   HCP-1000 PLATINUM
Product Name:   High Current Pro Platinum HCP-1000 ATX12V & EPS12V Power Supply
Marketing Information:

Antec's High Current Pro Platinum series is the pinnacle of power supplies. High Current Pro Platinum is fully modular with a revolutionary 20+8-pin MBU socket for the needs of tomorrow. By using a PSU that is 80 PLUS PLATINUM & ErP Lot 6: 2013 certified, operating up to 94% efficient, you can reduce your electricity bill by up to 25% when compared to many other power supplies. HCP Platinum's innovative 16-pin sockets create a new level of flexibility by doubling the modular connectivity, supporting two different 8-pins connectors and even future connectors of 10, 12, 14 or 16-pins. All cables are darkened to become Stealth Wires and are thus nearly invisible in your chassis. 4 High Current Rails and a 100% +12V output ratio maximize HCP-1000 Platinum's capabilities to power the latest CPU's & GPU's. CircuitShield™ makes the HCP-1000 Platinum safe and reliable in any environment with its nine industrial-grade protections. Backed by a 7 year warranty and lifetime global 24/7 support, the HCP-1000 Platinum embodies everything a power supply can accomplish today.

Product Type:   ATX12V & EPS12V Power Supply

Technical Information

Efficiency:   94%
Power Factor Correction (PFC):   Active
Number of Fans:   1
Protection Type:   Brownout
Protection Type:   Inrush Current
Protection Type:   No Load
Protection Type:   Over Power
Protection Type:   Over Temperature
Protection Type:   Short Circuit
Protection Type:   Surge
Protection Type:   Under Voltage
Protection Type:   Over Current
Protection Type:   Over Voltage
Modular:   Yes
NVIDIA SLI Supported:   Yes

Power Description

Input Voltage Type:   AC
Input Voltage:   110 V AC
Input Voltage:   220 V AC
Input Voltage Range:   100 V AC to 240 V AC
Number of +12V Rails:   4
Output Voltage:   -12 V DC @ 500 mA
Output Voltage:   12 V DC @ 40 A
Output Voltage:   5 V DC @ 25 A
Output Voltage:   5 V DC @ 3 A
Output Voltage:   3.3 V DC @ 25 A
Input Current:   6.50 A @ 220V
Input Current:   13 A @ 110V
Output Power:   1 kW

Interfaces/Ports

Plug/Connector:   On/Off Switch
Receptacles:   6 x 4-pin LP4 Peripheral Device
Receptacles:   1 x 24-pin ATX Motherboard
Receptacles:   1 x 4+4pin ATX12V Motherboard
Receptacles:   1 x 4-pin SP4 Floppy Drive
Receptacles:   1 x 8-pin EPS12V Motherboard
Receptacles:   6 x 6+2pin PCI-E
Receptacles:   9 x Serial ATA

Physical Characteristics

Form Factor:   Internal
Height:   3.4" (86.4 mm)
Width:   5.9" (149.9 mm)
Depth:   7.5" (190.5 mm)
Weight (Approximate):   2.13 kg
Green Compliant:   Yes
Green Compliance Certificate/Authority:   ErP Lot 6
Green Compliance Certificate/Authority:   RoHS
Green Compliance Certificate/Authority:   80 Plus Platinum

Warranty

Limited Warranty:   7 Year
