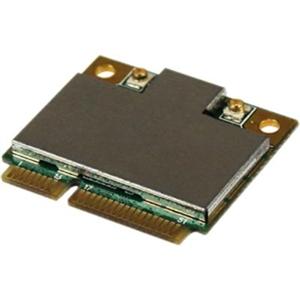

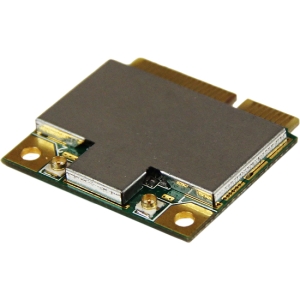

Startech PCI EXPRESS HALF MINI WIRELESS N CARD 7260HMWANWB

General Information

Manufacturer:   StarTech.com
Manufacturer Part Number:   MPEX300WN2X2
Manufacturer Website Address:   www.startech.com
Brand Name:   StarTech.com
Product Name:   Wireless Card
Marketing Information:   Add high speed Wireless-N connectivity through a Mini PCI Express slot. The MPEX300WN2X2 Mini PCI Express Wireless N Card lets you add high-speed 802.11n network connectivity to your laptop or small form factor system, with support for data transfer rates up to 300Mbps.

For efficient wireless communication, the card uses a 2T2R (2 Transmitter, 2 Receiver) Multiple Input/Multiple Output design over the 2.4GHz frequency. MIMO antenna configurations employ multiple signal paths for greater bandwidth, fewer lost packets and greater reception, even under conditions of interference.

The 300Mbps wireless N adapter offers the necessary speeds for demanding network applications such as streaming video, VoIP and network backups, while also offering backward compatibility with 802.11b/g networks (11/54Mbps) to connect to older WiFi routers as needed.

Using a half-height mini PCI express (Half Mini Card) form factor, this adapter is designed for use in the latest notebooks, small form factor computers (e.g. Mini-ITX), or custom embedded solutions where standard PCIe cards would not fit.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Packaged Quantity:   1
Product Type:   Wi-Fi Adapter

Technical Information

Wireless LAN Standard:   IEEE 802.11n
ISM Band:   Yes
UNII Band:   No
ISM Minimum Frequency:   2.40 GHz
ISM Maximum Frequency:   2.48 GHz
Number of Antennas:   2
Wireless Transmission Speed:   300 Mbps
Wireless Security:

• WPA
• WPA2
• WEP (64/128-bit)

Features:   MIMO Technology

Interfaces/Ports

Host Interface:   Mini PCI Express

Physical Characteristics

Form Factor:   Internal
Height:   0.1" (2.5 mm)
Width:   1" (25.4 mm)
Depth:   1.2" (30.5 mm)
Weight (Approximate):   400 mg

Miscellaneous

Package Contents:

• Wireless Card
• 1 x Driver CD
• 1 x Instruction Manual

System Requirements:

Operating Systems:

• Linux Kernel 2.6.35 to 3.11
• Windows XP (32/64-bit)
• Windows Server 2012
• Windows Server 2003 (32/64-bit)
• Windows Server 2008 R2
• Windows Vista (32/64-bit)
• Windows 7 (32/64-bit)
• Windows 8 (32/64-bit)

Device Supported:   Notebook
Certifications & Standards:

• CE
• FCC
• IEEE 802.11b/g/n

Green Compliant:   Yes
Green Compliance Certificate/Authority:   RoHS

Warranty

Limited Warranty:   2 Years Manufacture
