Zmodo Surveillance PKD-DK4216 4Channel Digital Video Recorder + 4 CMOS 420TVL Camera System CCTV No HDD Retail

Zmodo Surveillance PKD-DK4216 4Channel Digital Video Recorder + 4 CMOS 420TVL Camera System CCTV No HDD Retail



Detail Specifications

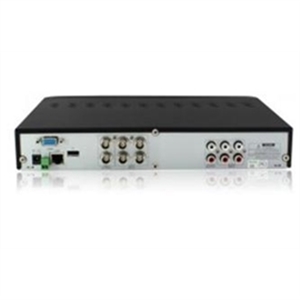

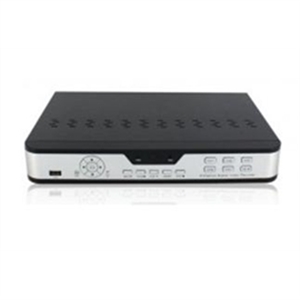

  Model :DVR-H9104V -StandAlone DVR
Video Compression :H.264
Video System :NTSC / PAL
Operation System :Linux Based
Video Input / Output :BNC 4-Channel Input / 2-Channel Output
  Other Video Output :VGA
Audio Input / Output :RCA 4-Channel Input / 2-Channel Output
Display Frame Rate :NTSC: 120 fps at D1 / PAL: 100 fps at D1
Display Resolution :NTSC: D1 (704 x 480) / PAL: D1 (704 x 576)
Recording Frame Rate :NTSC: 120 fps at CIF / PAL: 100 fps atCIF
  Record Resolution :Selectable: NTSC: D1(704 x 480) HD1(704 x 240) CIF (352 x 240) / PAL: D1(704 x 576) HD1(704 x 288) CIF (352 x 288)
Record Mode :Continuous / Time Schedule / Motion Detection
Recording Pack Time :15/30/45/60mins Selectable
  Simplex / Duplex /Triplex / Pentaplex :Pentaplex
Network :RJ45, 10M/100M
Net Protocol :TCP/IP, PPPoE, DHCP and DDNS
Remote Access :LAN or Internet Browsing
PTZ Control :RS-485
  HDD Interface :SATA, Support up to 2TB
Playback Mode :Normal Play /Fast Forward /Fast Rewind/ Frame by Frame
USB :USB Backup / USB 2.0
Remote Control :IR Remote Control
Power Supply :DC12V, 3A
Dimension :300mm (W) x 220mm (D) x 47mm (H)

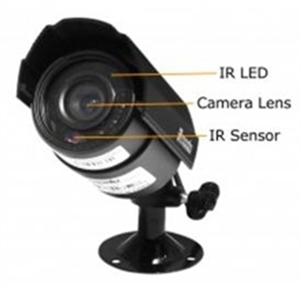

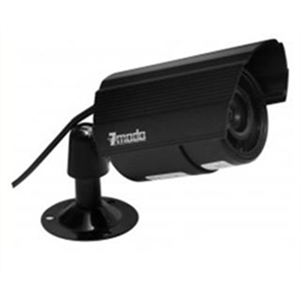

  Model :CM-C11306BK- Color IR Outdoor Bullet Camera
Image Sensor :1/4" Color CMOS
TV System :NTSC
Effective Pixels :NTSC: 656 (H) x 492 (V)
Horizontal Resolution :420 TV-Lines
Lens :6mm
  Number of IR LEDs :11 LEDs
Infrared Illumination (Night Vision) :30
Minimum Illumination :0.0 Lux
Weatherproof :Yes
S/N Ratio :> 45.6dB
  Video Output :1.0Vp-p, 75ohms
Power :12V DC
Material :Metal Shell

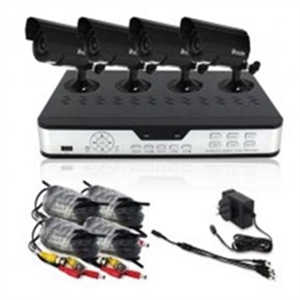

  Package Includes :
(1) DVR-H9104V DVR
(4) CM-C11306BK Color IR Security Outdoor Camera

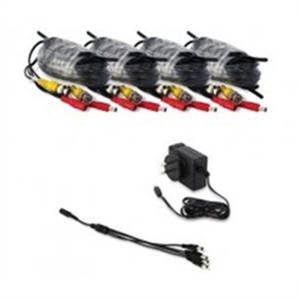

(4) 60ft Surveillance Video + Power All-in-one Cable
(1) 12V/1500mA 4 Port Power Supply for CCTV Camera
(1) IR Remote Control
(1) Users Manual
Monitor is not included
Pre-packaged camera kits are not available for individual upgrade
  Item Dimension (L"xW"xH"):
17.13 x 6.85 x 11.14

Weight:
12.0 lb

Warranty Information
2 Years





Zmodo Surveillance PKD-DK4216 4Channel Digital Video Recorder + 4 CMOS 420TVL Camera System CCTV No HDD Retail

  • Part Number: 9150
  • Brand: Zmodo
  • Product Sku: PKD-DK4216
  • Richmond BC Warehouse:
    Toronto ON Warehouse:
  • Availability: Call

  • $149.00

  • Was: $223.50
