Asus X99-PRO USB 3.1 Ci7 S2011-v3 X99 64G DDR4 SATA PCIE USB ATX Motherboard Retail
Asus Motherboard X99-PRO USB 3.1 Ci7 S2011-v3 X99 64G DDR4 SATA PCIE USB ATX
Detail Specifications
| CPU Intel Socket 2011-v3 Core i7 Processors Supports Intel 22 nm CPU Supports Intel Turbo Boost Technology ( The Intel Turbo Boost Technology 2.0 support depends on the CPU types.) Chipset Intel X99 |
| Memory 8 x DIMM, Max. 64GB, DDR4 3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz Non-ECC, Un-buffered Memory Quad Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) ( Hyper DIMM support is subject to the physical characteristics of individual CPUs. ) |
| Multi-GPU Support Supports NVIDIA Quad-GPU SLI Technology Supports NVIDIA 3-Way SLI Technology Supports AMD Quad-GPU CrossFireX Technology Supports AMD 3-Way CrossFireX Technology |
| Expansion Slots 40-Lane CPU- 3 x PCIe 3.0/2.0 x16 (x16, x16/x16, x16/x16/x8) 28-Lane CPU- 3 x PCIe 3.0/2.0 x16 ( x16, x16/x8, x16/x8/x4) 1 x PCIe 2.0 x16 (x4 mode) 2 x PCIe 2.0 x1 (x1 mode) |
| Storage New Intel Core i7 Processors : 2 x M.2 Socket 3, , with M Key, type 2242/2260/2280/22110 storage devices support (Support PCIE SSD only) Intel X99 chipset : 1 x SATA Express port, , compatible with 2 x SATA 6.0 Gb/s ports 8 x SATA 6Gb/s port(s), Support Raid 0, 1, 5, 10 Supports Intel Smart Response Technology, Intel Rapid Recovery Technology5 |
| LAN Intel I218V, 1 x Gigabit LAN Controller(s) Wireless Data Network Wi-Fi 802.11a/b/g/n/ac Supports dual band frequency 2.4/5 GHz Bluetooth Bluetooth V4.0 |
| Audio Realtek ALC1150 8-Channel High Definition Audio CODEC featuring Crystal Sound 2 - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 112 dB SNR stereo playback output (Line-out at rear) and 104 dB SNR stereo playback input (Line-in) - High-fidelity audio OP AMP(s) |
| Audio Feature : - DTS Ultra PC II - DTS Connect - Optical S/PDIF out port(s) at back panel - BD Audio Layer Content Protection - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference |
| - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Audio amplifier: Provides the highest-quality sound for headphone and speakers - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity |
| - Unique de-pop circuit: Reduces start-up popping noise to audio outputs - Top notch audio sensation delivers according to the audio configuration - EMI protection cover to prevent electrical noise to affect the amplifier quality |
| USB Ports Intel X99 chipset : 5 x USB 3.0/2.0 port(s) (4 at mid-board) Intel X99 chipset : 8 x USB 2.0/1.1 port(s) (4 at back panel, , 4 at mid-board) ASMedia USB 3.1 controller : 2 x USB 3.1/3.0/2.0 port(s) (2 at back panel, teal blue) ASMedia USB 3.0 Hub : 3 x USB 3.0/2.0 port(s) (3 at back panel, blue) |

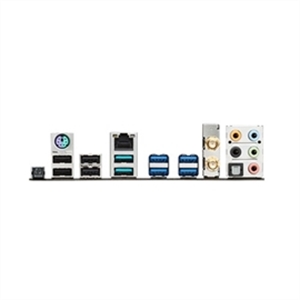

| Operating System Support Windows 8.1 Windows 8 Windows 7 Back I/O Ports 1 x PS/2 keyboard/mouse combo port(s) 1 x LAN (RJ45) port(s) 2 x USB 3.1 (teal blue) 4 x USB 3.0 (blue) 4 x USB 2.0 1 x Optical S/PDIF out 5 x Audio jack(s) 1 x USB BIOS Flashback Button(s) 1 x ASUS Wi-Fi GO module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v4.0 |
| Internal I/O Ports 1 x AAFP connector 2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x SATA Express connector: gray, 1 x M.2 Socket 3 with M Key design, type 2242/2260/2280/22110 storage devices support (Support PCIE SSD only) 1 x TPM connector(s) |
| 1 x COM port(s) connector(s) 8 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x CPU OPT Fan connector(s) (1 x 4 -pin) 4 x Chassis Fan connector(s) (4 x 4 -pin) 1 x S/PDIF out header(s) |
| 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x EZ XMP switch 1 x System panel(s) (Q-Connector) 1 x Chassis Intrusion connector(s) 1 x DRCT header(s) |
| 1 x MemOK button(s) 1 x Thermal sensor connector(s) 1 x TPU switch(es) 1 x EPU switch(es) 1 x CPU/DRAM overvoltage jumper(s) 1 x Power-on button(s) 1 x Reset button(s) 1 x Clear CMOS jumper(s) 1 x 5-pin EXT_FAN(Extension Fan) connector |
| Accessories Users manual ASUS Q-Shield 6 x SATA 6Gb/s cable(s) 1 x Feature manual 1 x M.2 X4 bracket 1 x Supporting DVD 1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant) 1 x SLI bridge(s) 1 x Q-connector(s) (2 in 1) |
| Operating System Windows 8.1 32/64-bit Windows 8 32/64-bit Windows 7 32/64-bit Form Factor ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Item Dimension (L"xW"xH"): 10.35 x 12.91 x 2.68 Weight: 4.4 lb Warranty Information: 3 years Manufacture |
Asus X99-PRO USB 3.1 Ci7 S2011-v3 X99 64G DDR4 SATA PCIE USB ATX Motherboard Retail
- Part Number: 9361
- Brand: ASUS TeK
- Product Sku: X99-PRO/USB 3.1
-
Richmond BC Warehouse:Toronto ON Warehouse:
- Availability: Call
-
$482.90
- Was: $724.35
