General Information

Manufacturer:   CyberPower Systems, Inc
Manufacturer Part Number:   OL3000RTXL2U
Manufacturer Website Address:   www.cyberpowersystems.com
Brand Name:   CyberPower
Product Line:   Smart Application
Product Model:   OL3000RTXL2U

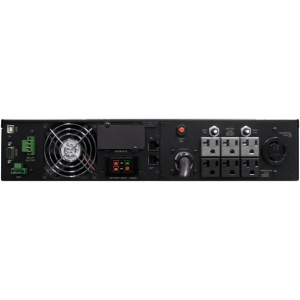

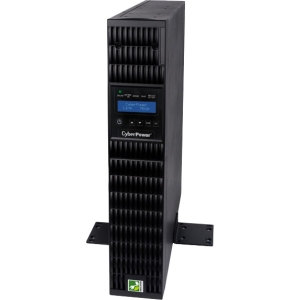

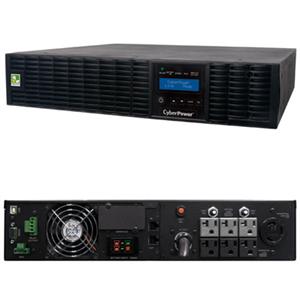

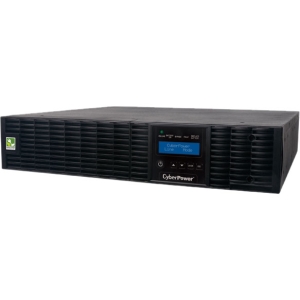

Product Name:   Smart App Online OL3000RTXL2U 3000VA 100-125V Pure Sine Wave LCD Rack/Tower UPS
Product Type:   Dual Conversion Online UPS

Technical Information

Plug/Connector Type:   NEMA L5-30P
Receptacles:   1 x NEMA L5-20R
Receptacles:   6 x NEMA 5-20R
Dataline Protection:   RJ-45
Dataline Protection:   RJ-11
Bypass Switch:   Automatic
Bypass Switch:   Manual
Emergency Power OFF:   Yes
Cord Length:   10 ft

Power Description

Load Capacity (VA):   3000 VA
Load Capacity (Watt):   2700 W
Input Voltage:   110 V AC
Output Voltage:   110 V AC
Output Voltage:   115 V AC
Output Voltage:   120 V AC
Output Voltage:   125 V AC
Waveform Type:   Sine Wave

Management

Network Management:   SNMP/HTTP Remote Monitoring
Alarm:   Overload
Alarm:   Replace Battery
Alarm:   UPS Fault
Alarm:   Battery Mode
Alarm:   Low Battery

Interfaces/Ports

Serial Port:   Yes
USB:   Yes

Battery Information

Battery Characteristics:   Maintenance-free
Battery Chemistry:   Sealed Lead Acid
Backup/Run Time (Full Load):   3 Minute
Backup/Run Time (Half Load):   9 Minute
Maximum Battery Recharge Time:   5 Hour
Hot Swappable:   Yes

Physical Characteristics

Rack Height:   2U
Form Factor:   Tower/Rack Mountable
Weight (Approximate):   30.93 kg

Miscellaneous

Software Included:   PowerPanel Business Edition Software
Green Compliant:   Yes
Green Compliance Certificate/Authority:   RoHS

Warranty

Limited Warranty:   3 Years Manufacture
