Cooler Master CM 690 III ATX 3X5.25 7X3.5/2.5 3X2.5 8XSLOTS Black Case
Cooler Master CM 690 III ATX 3X5.25 7X3.5/2.5 3X2.5 8XSLOTS Black Case
| Model Number | Black: CMS-693-KKN1 CMS-693-KWN1 (with side panel window) Green: CMS-693-GWN1 (with side panel window) |
| Available Color | Midnight Black |
| Materials | Polymer, mesh front bezel |
| Dimensions (W x H x D) | 230 x 507 x 502 mm / 9.1 x 20.0 x 19.8 inch |
| Net Weight | 8.9 kg / 19.6 lbs |
| M/B Type | microATX, ATX |
| 5.25" Drive Bays | 3 (exposed) |
| 3.5" Drive Bays | 7 (hidden) |
| 2.5" Drive Bays | 10 (hidden; 7 from the HDD/SSD combo cages, 1 under the ODD cage, 1 behind the M/B tray,1 at the bottom) |

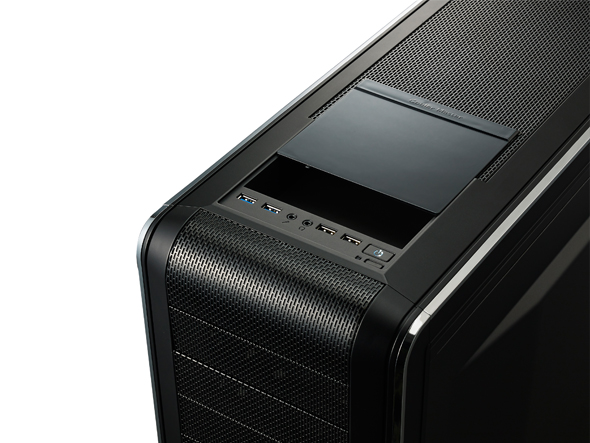

| I/O Panel | USB 3.0 x 2, USB 2.0 x 2, Audio In & Out (supports AC97 / HD Audio) |
| Expansion Slots | 7+1 |

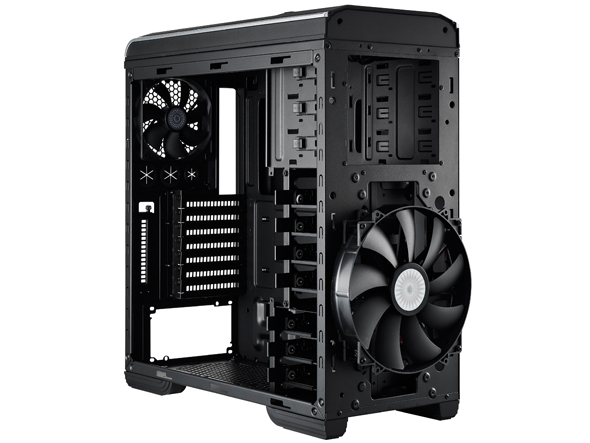

| Cooling System | Top: 120/140mm fan x 2, or 200mm fan x 1 (optional) Front: 200mm fan x 1 (installed), or 120/140mm fan x 2 , 180mm fan x 1(optional) Rear: 120mm fan x 1 (installed) Side: 120mm fan x 2 or 180/200mm fan x 1(optional) - for CMS-693-KKN1 (standard version) only Bottom: 120mm fan x 1 (optional) HDD cage: 120mm fan x 1 (optional) |
| Power Supply Type | Standard ATX PS2 |
| Maximum Compatibility |
VGA card length: |
Cooler Master CM 690 III ATX 3X5.25 7X3.5/2.5 3X2.5 8XSLOTS Black Case
- Part Number: 10184
- Brand: Cooler Master
- Product Sku: CMS-693-KKN1
-
Richmond BC Warehouse:back order 7-10 days
- Availability: Call
-
$114.45
- Was: $171.68
